HIGH-PERFORMANCE
LARGE SIZE MODEL
WUN
1184ZGU
- Capacity：118kg
- Maximum Machine Dimension：
Width2010 x Depth2323 x Height2062mm - Weight：5220kg

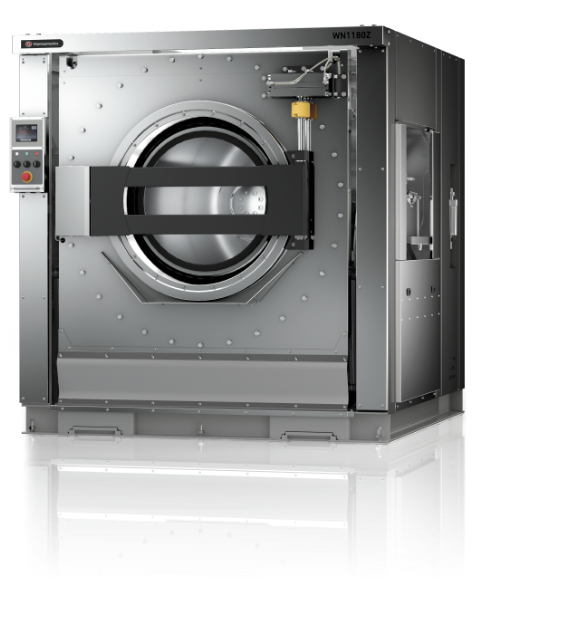

Yamamoto’s largest ever washer-extractors, suitable for all industrial environments.
Equipped with pneumatic door locks, large water valves, and high-performance air ride suspension, Yamamoto washer-extractors boast performance unmatched in the industry.
- Excellent cleaning quality
- Initial cost reduction
- Easy-to-clean drain valve
- 10 water level settings
- Automatic cleaning program
- Highly durable shock absorbers and springs
- Extra-large water supply valve
- Pneumatic door lock and release
Space-saving design
Developed to minimize installation space while increasing processing capacity, this machine is a downsized version of our previous model, the WN1001Z, with a thorough space-saving design.
Automatic oil supply to the main shaft oil seal
When the oil level is low, a warning is displayed on the touch panel.
Proper oil management will extend the life span of the bearings.
Excellent durability and vibration resistance
The air ride absorbs vibrations during drum rotation, stabilizing the extraction rotation.
The touch panel with a high-brightness monitor provides excellent operability.
Detailed settings for each course allow for precise cleaning
Fall prevention apron
When loading clothes in and taking out of the machine, it prevents clothes from falling into the gap between the machine body and front panel.
Disc brake
The disc brake stops the inertial rotation during extraction to reduce lost time.
Manual drum rotation switch
The basket can be stopped at any position, making it easy to remove any items stuck to it after extraction.
SUPERIOR FEATURE
Unique mechanism that improves work efficiency
WUN1184ZGU
The drum tilts back and forth, allowing for efficient clothes loading and unloading.
Loading
The drum tilts upward (backward), making it easy to load clothes into the back.
Unloading
The drum tilts downward (forward), making it easier to unload clothes.
OPTION
-
Two outlets & three inlets
The system is used to recycle drainage water.
Two-drain system separates dirty drainage and recycled drainage, and the recycle drainage is used for cleaning purposes by three inlets.
Therefore, the water supply amount used for cleaning can be significantly reduced.
