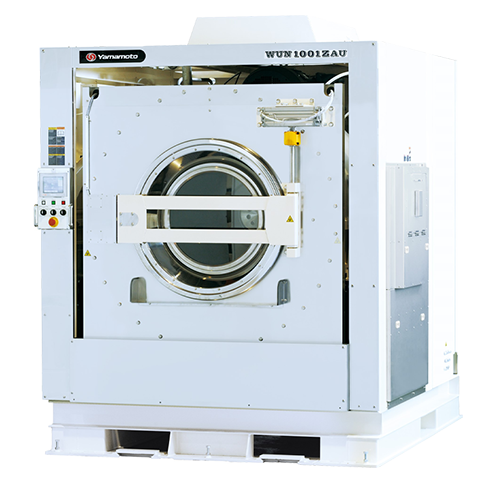

WUN 1184AU

Washer-extractorsWUN 1184AU

FEATURES

SPECIFICATION

MODEL WUN 1184AU (WUN 1001ZAU)
Capacity 118kg
Drum Diameter 1320mm
Depth 860mm
Speed Wash 20-40rpm
Extract 100-640rpm
Power supply AC415V 3-Phase 4-wire
Motor 18.5Kw 6P
Supply pressure Water 0.1-0.3MPa
Hot water 0.1-0.3MPa
Steam 0.5-0.7MPa
Machine weight 5,900kg

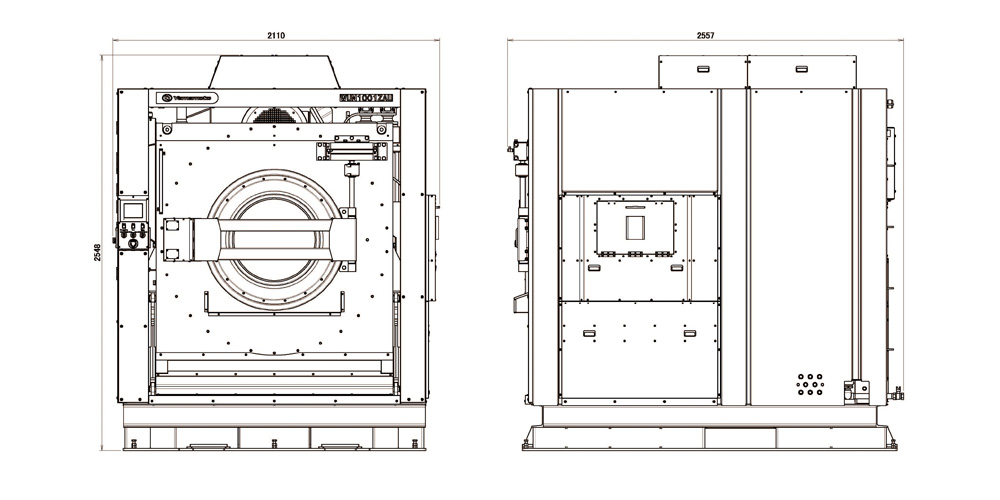

DRAWING
