RSF 200
PRODUCT LIST FOR AUSTRALIA
Towel-foldersRSF 200
FEATURES
-
Feeding, ironing, folding & stacking All in one machine Space saving compact design
-
High performance 1 person operation Max 200pcs/person
(Semi-double bed sheets,
Water retention 50%) -
Easy to use touch screen panel Freely set up to 40 programs
Robust design and structure Japanese made
SPECIFICATION
| MODEL | RSF 200 | |
|---|---|---|
| Applicable linen | Bed sheets, Duvet covers, Pillow cases(ironing only) |
|
| Maximum linen size | W3,000 X L2,900 | |
| Minimum linen size | W1,200 X L1,200 | |
| Stacking pieces (*Not available for pillow cases) |
1- 20 pieces | |
| Maximum processing capacity (*Double size bed sheets) |
200 pieces | |
| Compressed air supply | Working pressure | 0.6MPa |
| Consumption | 120L/min | |
| Steam supply | Working pressure | 0.6-0.9MPa |
| Consumption | 160 – 180kg/h | |
| Power supply | AC200V 3-Phase | |
| Total motor capacity | 3.032Kw 4P | Total load current | 20.37A | Circuit breaker capacity | 30A | Machine weight | 6,900kg |

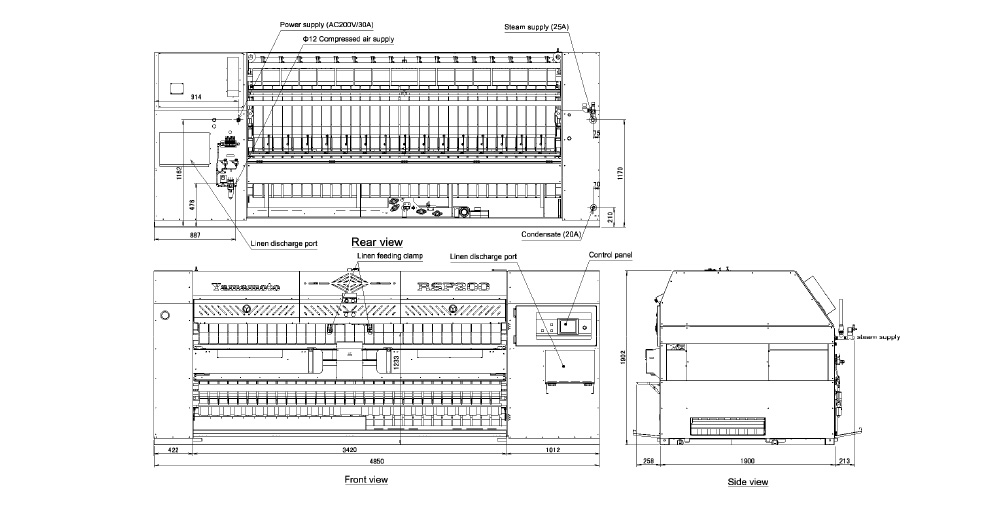

DRAWING
